Power Door Lock Installation
Written by: jmaki
Alright ya'll. I finally got around to finishing my power locks, and I am so happy I finally did it! Suprisingly, after I figured out the correct way to wire them (went to a custom car shop and they told me lol) it's really not hard! The hardest part is just getting the alarm system installed to use them (I don't say how to do that here....), but you could also get the door-lock switches. I'll be getting some soon, just gotta go to a junk yard and buy some - any 3 wire switches'll do -- I explain how one WOULD install em).
First off, here's what you need:
- 2-door power lock kit (I got mine from ebay. Make sure it comes with the dual relay thing and that they are 2-wire actuators, exactly like this auction.
- Alarm with 3 wire door lock option OR 1 (or two) 3-wire door lock switches (from any car should be fine, just goto a junk yard, find ones w/3 wires that would look good)
- Drill (largest bit used was 11/64 - used to drill hole in door for mounting actuator)
- Electrical tape
- A thick wire, such as a coat hanger, to feed actuator wires through the "door-tube" (from the door into the car)
- Various philips screwdrivers
- 1 screw (if you want to make your own ground, which I recommend)
- access to a +12v source (I just ran a seperate wire off my main "extras" wire I put in for my neon lights and such)
- Double sided mounting tape or velcro to mount the relay kit (don't need to mount it, it's a pretty snug fit where I put it anyway)

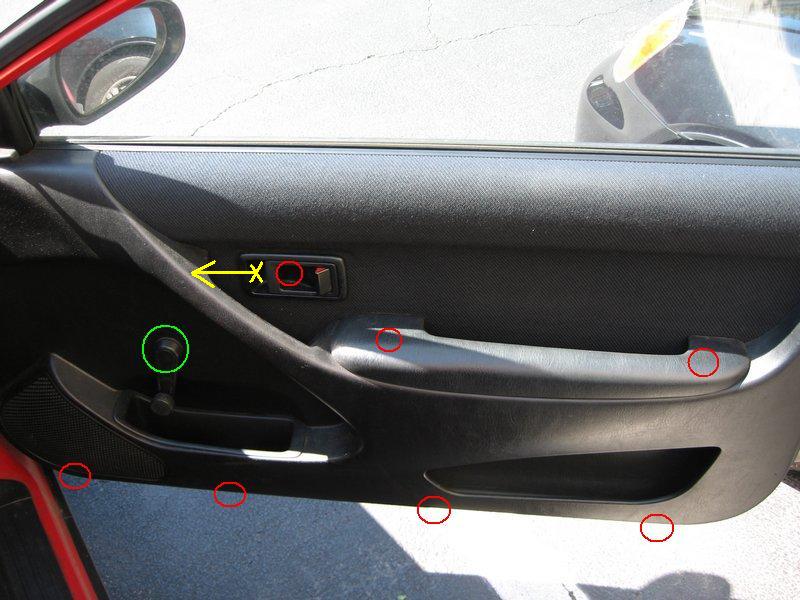

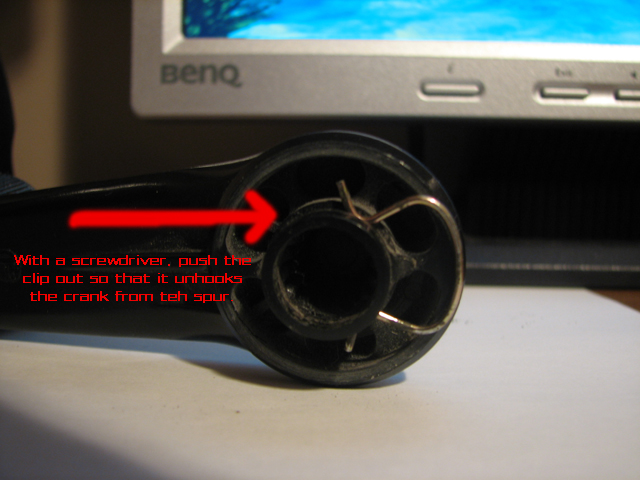

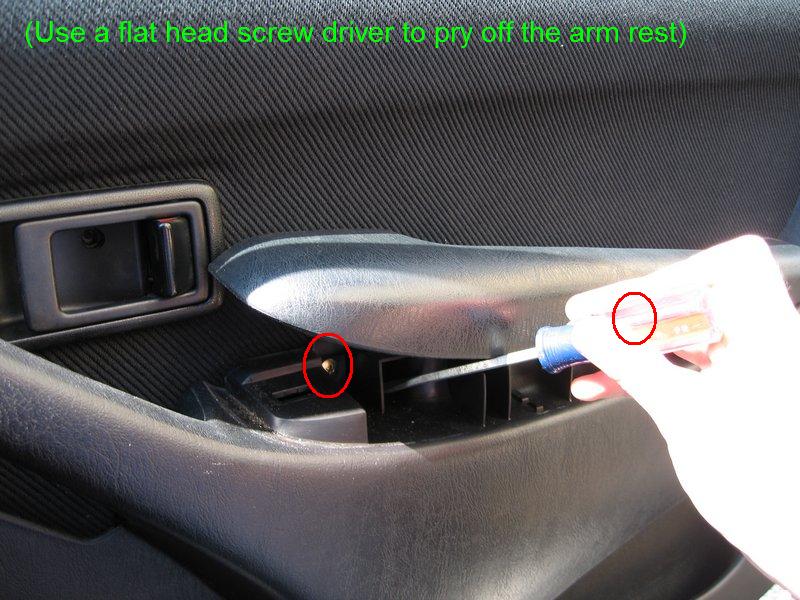

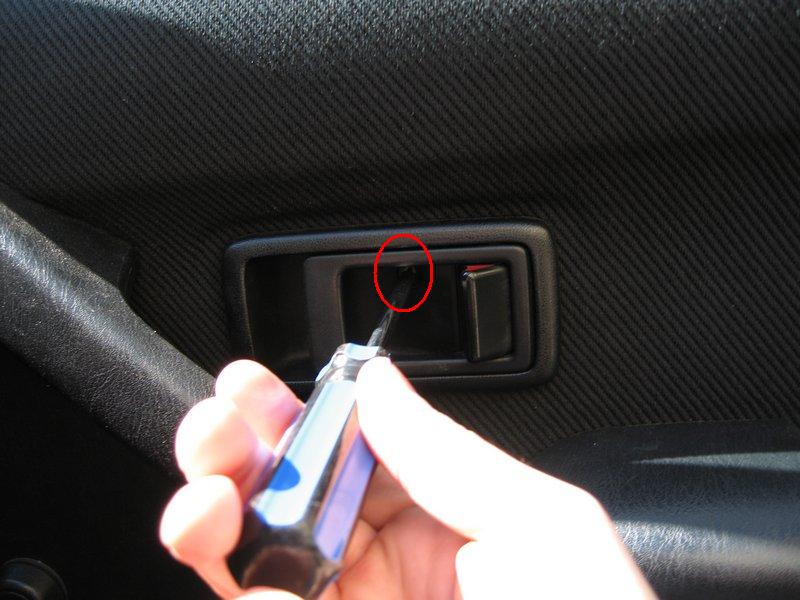

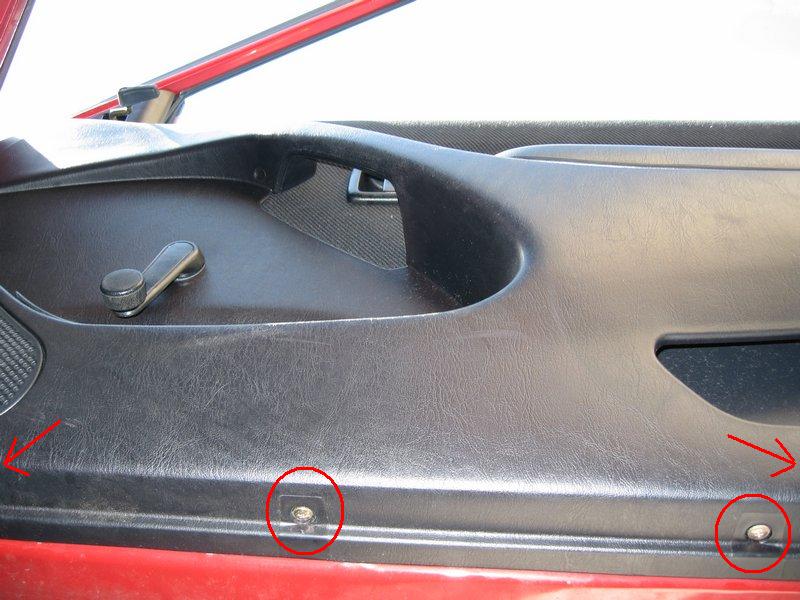

This is a door. Look familiar? (jk) We start by taking off the door panel. The red circles are where screws are: 4 on the bottom, 2 under the arm rest, and 1 in the handle. Then there's the knob for the window (green circle). The yellow arrow is for later. To remove the window crank knob, I usually use a very small flat head screw drive to pry the horse shoe lock off/out.
Now we can actually remove the panel. Start off by sliding the door handle towards the hinge of the door. Refer to yellow arrow in the previous step. The handle should now be loose and able to be pulled away from the door a LITTLE bit (don't pull it out a lot, it can bend the metal bars).

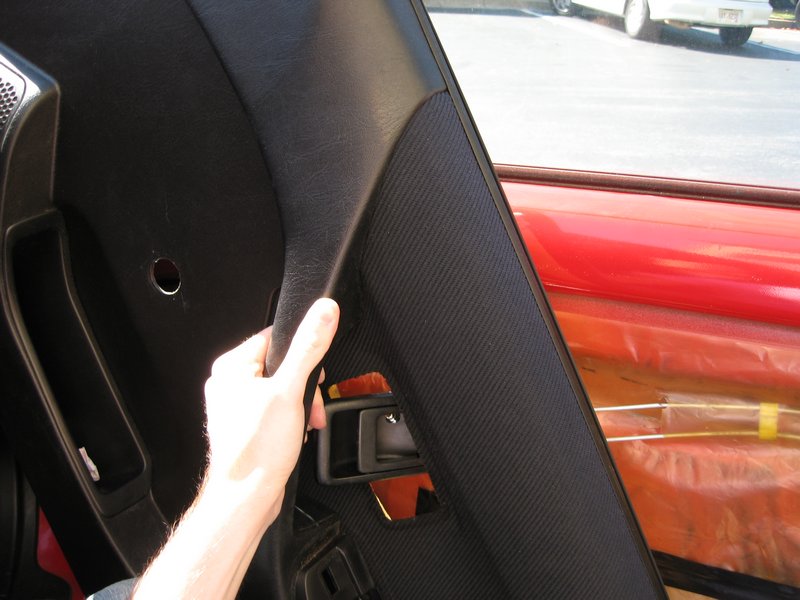

With all the screws and the crank knob removed, you can pull off the lower 3/4 of the panel by just tugging on it. There are plastic "push pins" along the edges of the panel which hold the panel to the door. Then, with the bottom pulled away from the door, use your palm and hit the bottom of the panel where the 4 screws came out so it comes loose on the top. Do this while turning the panel around the hinge (see pic below), and not letting the handle move too far away from the door and not letting it (handle) twist too much, remove the panel! Again, don't let the metal bars going to the handle bend. It may mess things up.

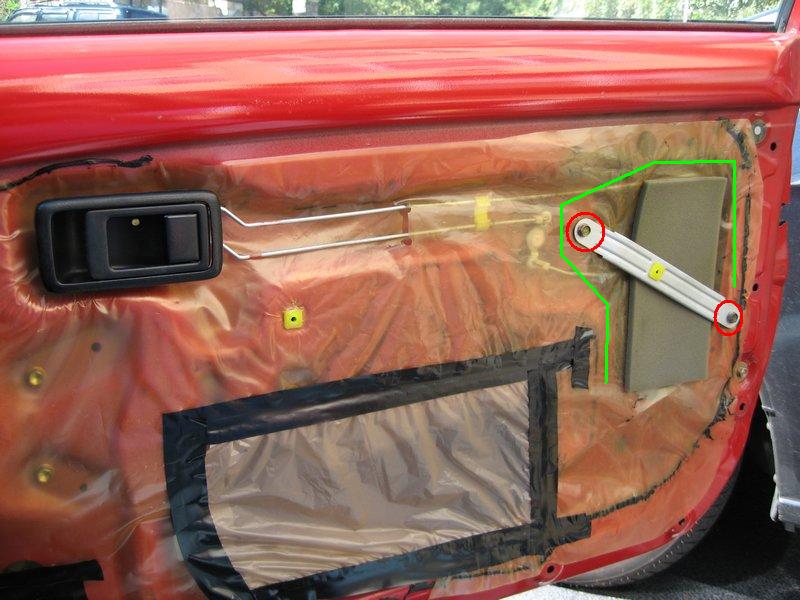

Now, remove the 2 bolts (red) and take off the bar thing. Cut away the plasic (green). We'll tape the plastic back the way it was later.

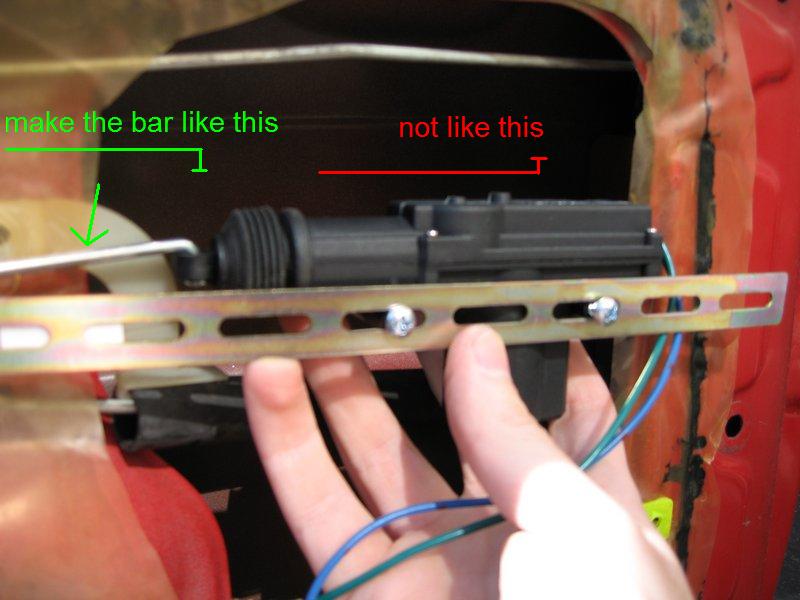

Finally, the power lock! Okay, so first take the "L" bar and feed it through the tip of the actuator so the bar comes out the "top" of the actuator (don't know how to explain that better so just look at the picture haha). Then, go ahead and use two of the screws and place them in the 3rd and 5th slot on the mounting bar. Don't tighten the screws all the way yet, but get them tight enough to not let the actuator easily slide left and right on the mounting bar.

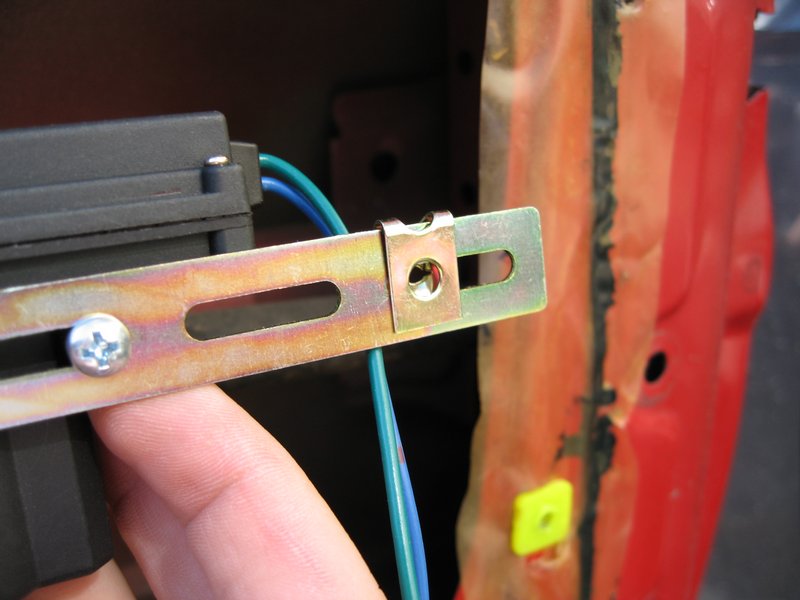

Then, put on the clip-on nut that mounts to the right ride of the mounting bar. You should be able to put it on the "first" hole like I did.

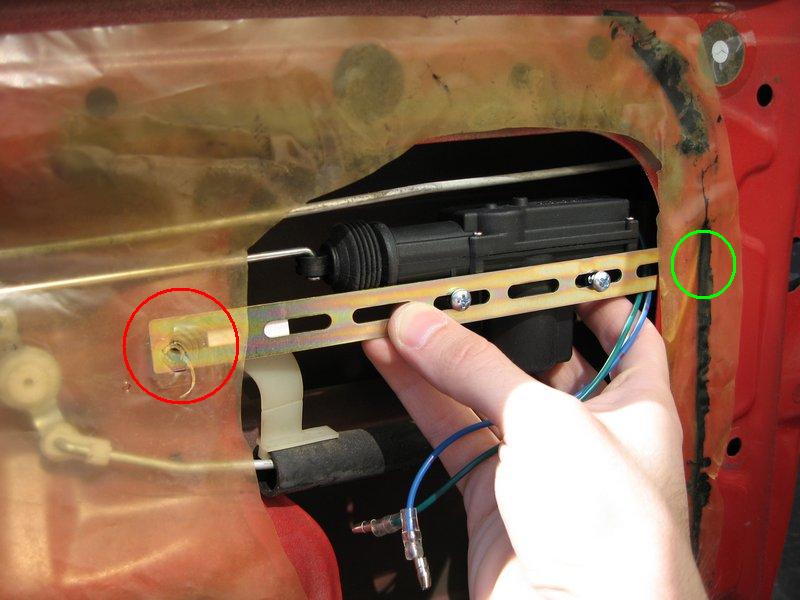

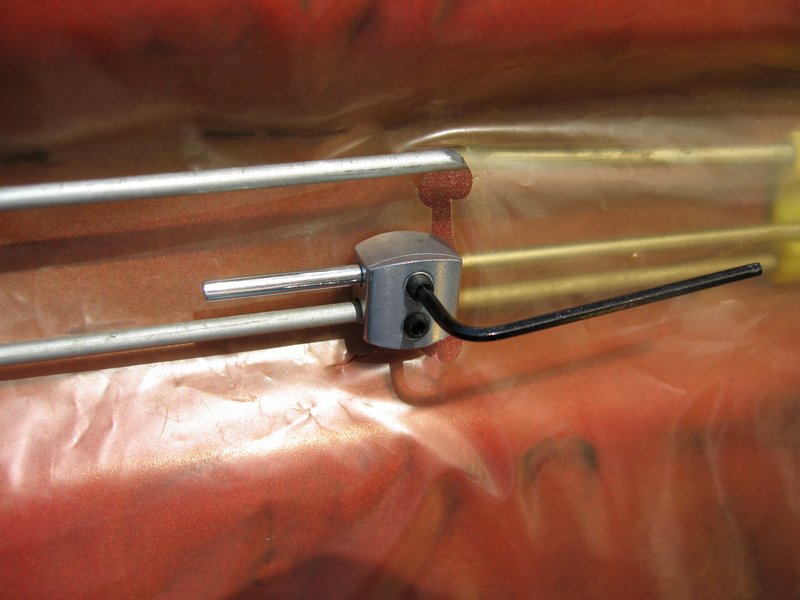

Slide the coupler down the "L" bar which screws on and attaches to the "locking bar". Tighten the screws on it just so it loosely holds onto the "locking bar". Feed the "L" bar behind the plastic in between the bar that is the lock and the bar that is the handle. Lock and unlock the door if you are confused which one is which. You want to attach the "L" Bar to the one that moves when you lock/unlock the door. Place the left end of the mounting bar where one of the previous bolts was, and the right end inside the door (see pic) go ahead and screw in the bolt (red) with the bar there so we can determine where to drill the hole (green) for the right side and where to position the actuator.

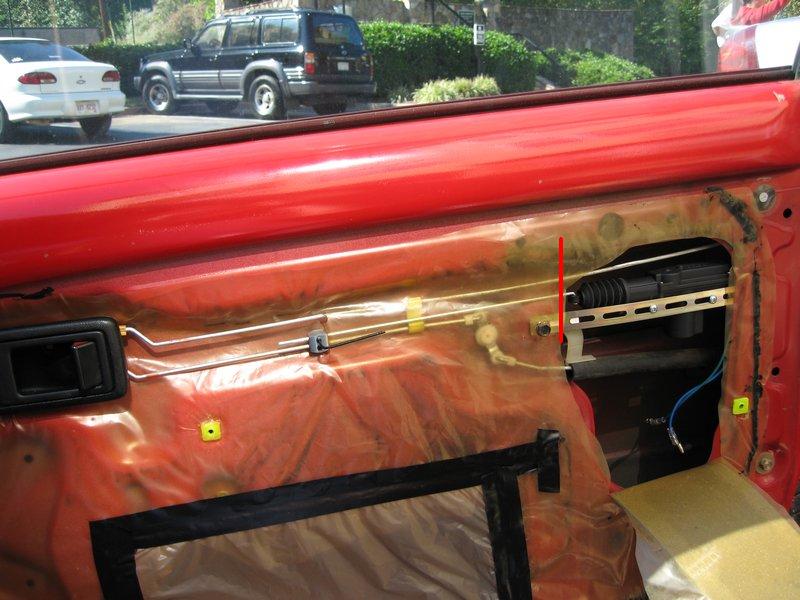

Unlock the door and fully extend the actuator. Now, slide the actuator right (or left) so that it's in a good place (not running into the frame (red) ). Try to make it so the L bar is a parallel with the locking bar as possible.
With everything in place as you want it, tighten the screws on the coupler on the L bar. Tighten it pretty good. I'm not sure if those screws are plastic, so be careful not to over tighten.

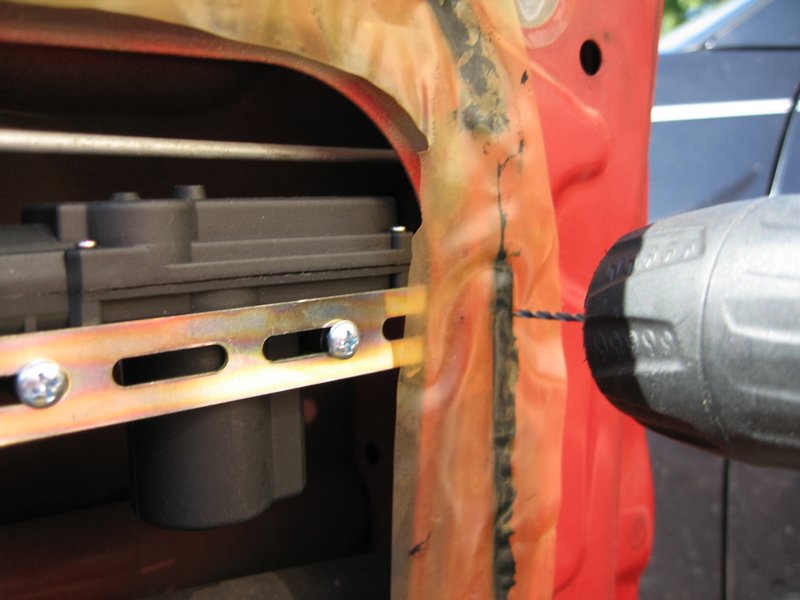

Roll down the window to make sure that the actuator isn't in the way. I dont think you could even if you tried, but do it just to be safe! If all is good either remove the actuator setup, or simply push the actuator in a towards the door a bit so you don't drill into it. Get your drill, and make your hole for the right side of the mounting bar to be secured. It doesn't have to be EXACT since you have like an inch wide hole on the mounting bar. Be careful not to drill into the wires of the actuator either!
Now we need to test it. Put the screw back that holds the handle in place so it won't move around when unlocking/locking. Get a good ground and a +12v source. Attach one wire to ground, and the other to +12v. It should either lock or unlock, then swap the wires and it should do the opposite! If it's not working, check your ground (or get a new actuator? lol ). NOTE: Don't keep it connected for a long time. I dont' know if having it keep on trying to lock'unlock for a long time would break it!

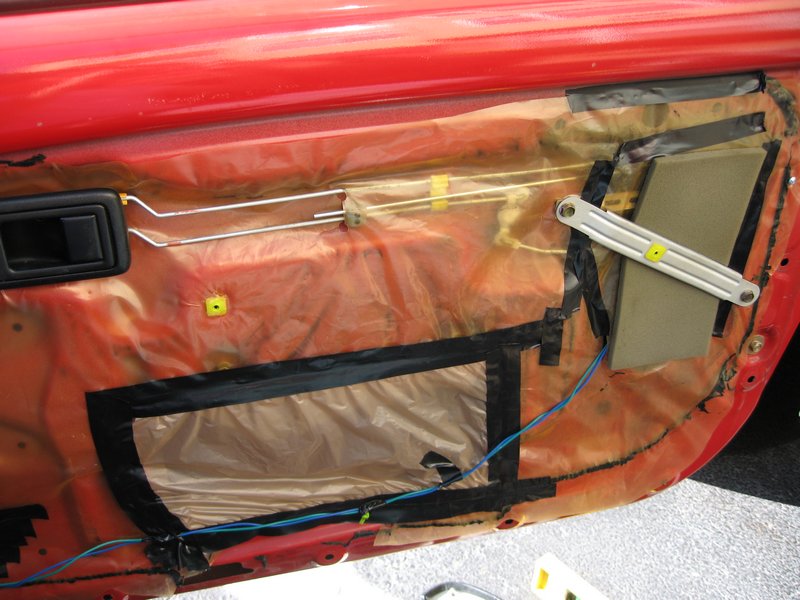

If it is working correctly, remove the bolt holding the left side of mounting bar. Run the wires down around the plastic. Make sure there's no "slack" left behind the plastic to get caught by the window. Run the wires towards the speaker.

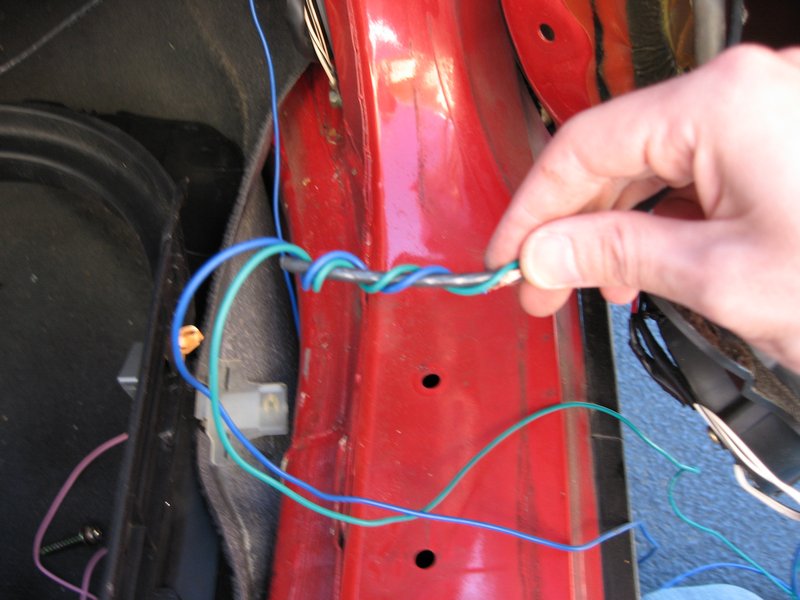

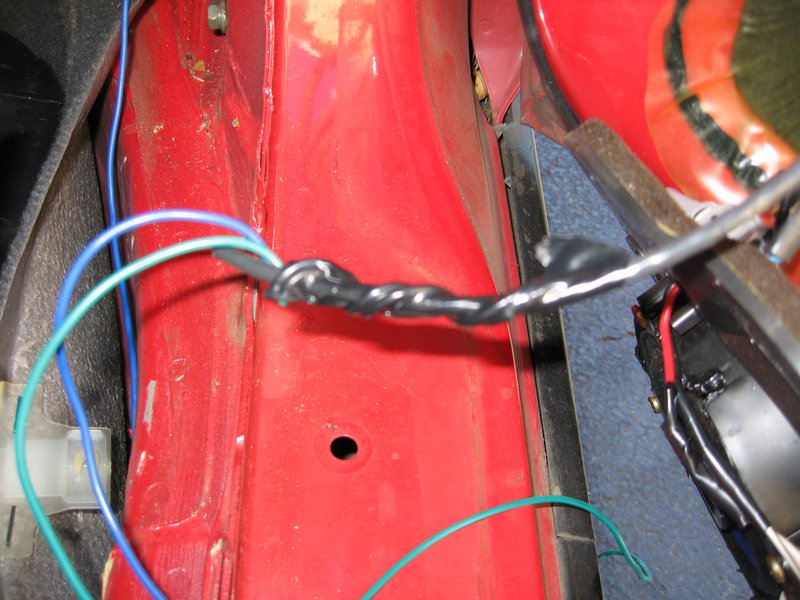

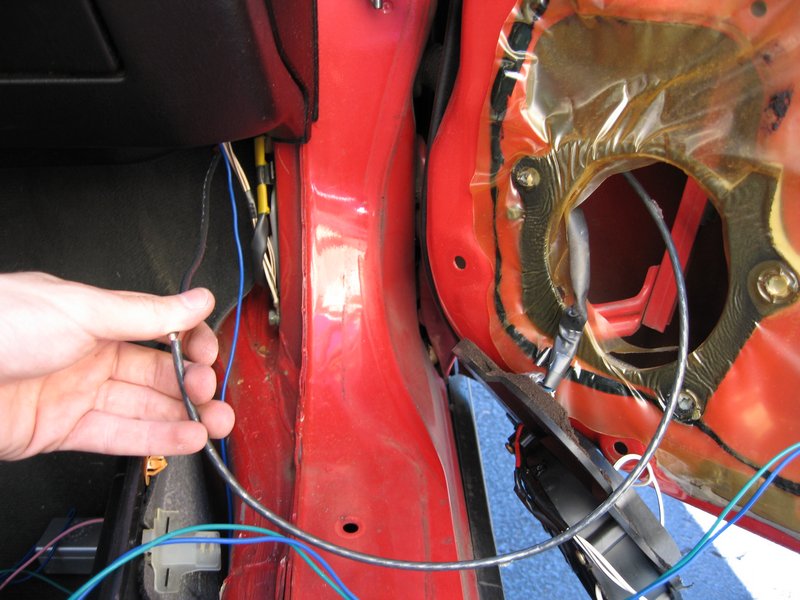

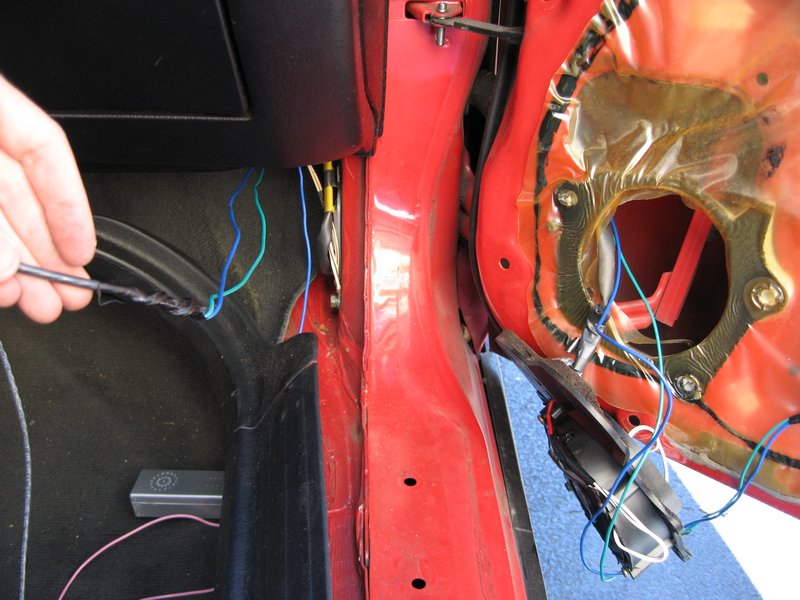

Now to route the wiring. Remove the speaker. There's 3 bolt/screws holding it on. To get the wire to follow the rubber tube that the speaker wire goes through I got a thick guage wire. I suppose you could use a hanger or something similar. I fed it through the tube. I had to keep twisting the wire and massaging the tube to work it through, this took a while... With the wire though the tube, I wrapped the actuator wires around one end, taped them up, and pulled them though!

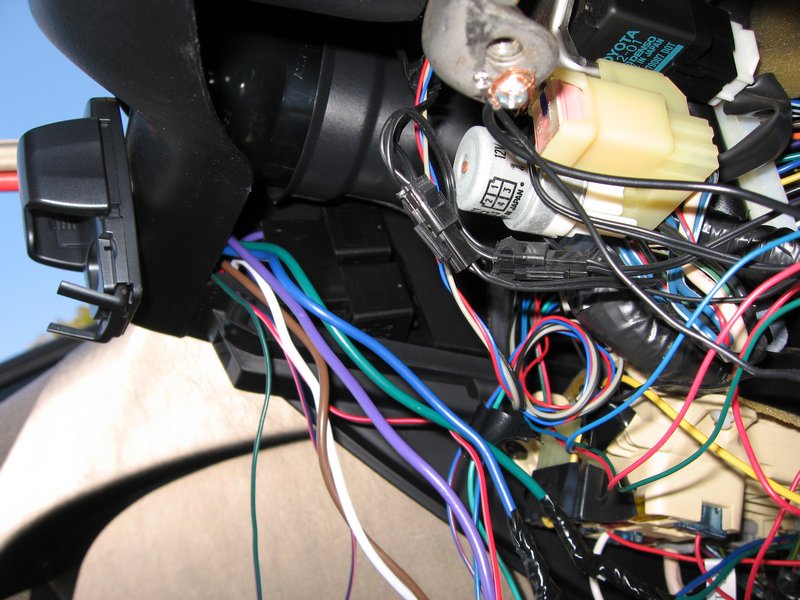

Next we mount the relays. So I decided to mount the relays up under the dash. They are inside the top-left area in the picture.

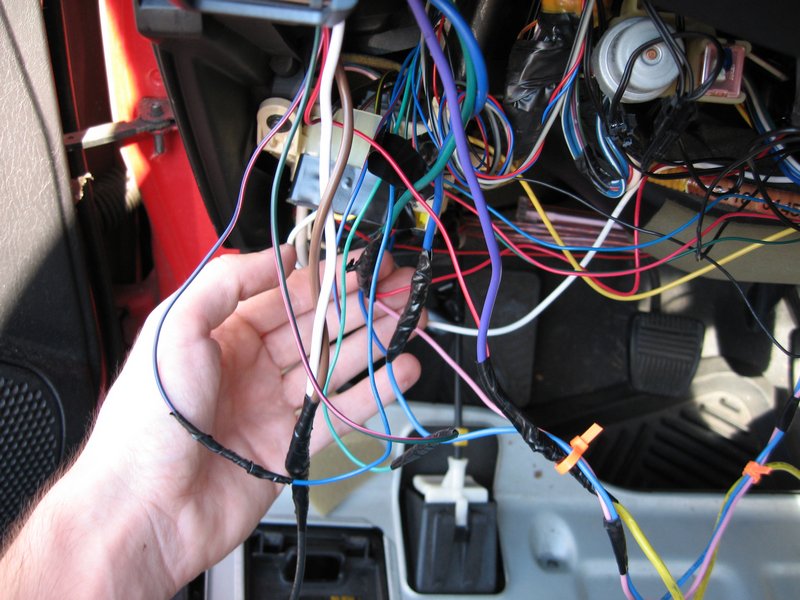

So, the relay kit has 8 wires. 5 are THICK (brown, white, purple, green, blue), and 3 THIN (red, blue, green). Not that a pic would really help here, but here's one anyway.
The THICK blue and green wires attach to the blue and green wires from the actuator(s).
The THICK brown and white both go to ground. I recommend drilling a hole somewhere and use a screw to make a fresh ground. Don't forget to clear away any paint there too.
The THICK purple and the THIN red wire to go a +12v source. I just attached this to my power wire to my neons and such. I don't know if you'd want to piggy back on some random +12v wire. I don't know how much current these things pull.
Now... Here's the last step to get these to work... You now need either a alarm system, or you can go to the junk yard (or does any Paseo has power locks?) and get a power lock switch that has 3 wires coming from it. You would attach the ground, THIN blue and green from relays, and you are SET! I know the Code Alarm, which I have, and the VIPER alarms have a 3-wire port coming from them to which you would just match up the THIN blue and green wire the THIN blue and green wire from the alarm box. Don't use/cut off the 3rd thin, red, coming from the alarm.
